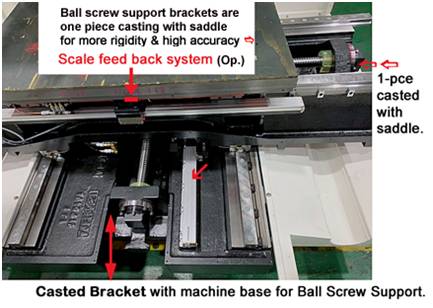

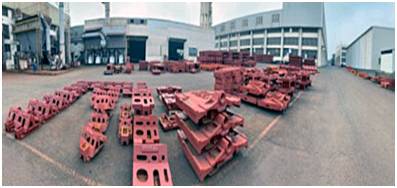

FIRST CLASS QUALITY AND ACCURACY ARE BUILT BY YCM’S TOTAL TECHNOLOGIES.

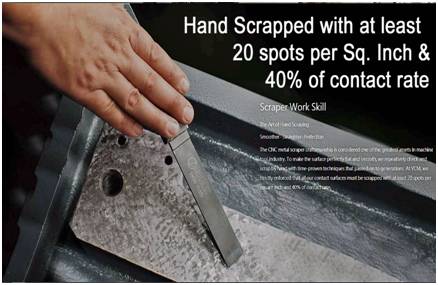

Make the surface perfectly flat and smooth
NXV - SERIES
HIGH SPEED & HIGH ACCURAE VERTICAL MACHINING CENTER
Caltec Concepts & Engineering
Caltec Concepts & Engineering
Caltec Concepts & Engineering
Caltec Concepts & Engineering
Caltec Concepts & Engineering
| MODEL | TRAVEL | TABLE SIZE | Sp. speed | Sp. motor | ATC Taper |
|---|---|---|---|---|---|
| NXV600A | 23.6 X 16 x 17.7” | 27.6 x 16.5” | 12K, 15K rpm | 20 HP | 20 tools CT40 |
| NXV1020A | 40 x 20.5 x 21.2” | 44.1 x 20.5” | 12K, 15K rpm | 25 HP | 24/30/40 CT40 |
| NXV1380A | 52.4 x 30 x 27.6” | 56.3 x 30” | 12K, 15K rpm | 25, 40 HP | 24/30 CT40 |
| NXV1680A, B | 64 x 34 x 30” | 68.1 x 30” | 6K,10k,12k,15K | 25, 40 HP | 24/30 CT40, 50 |
AUTOMATIC PALLET CHANGER INCREASE YOUR PODUCTIVITY UP!!
Caltec Concepts & Engineering
Rotary type APC
Caltec Concepts & Engineering
Caltec Concepts & Engineering
4-axis or Index table(Op.)
NXV560A-APC
| Pallet Table | 22” x 16.14” (2 sets) |
| Table Max. Load | 265 Lbs./pallet |
| Spindle motor | 25 HP |
| Spindle speed | 12,000 rpm |
| Spindle taper | CT-40 BigPlus |
| ATC | 24, 30 (Op.) |
| Position accuracy | ± 0.000012” |
| Flower space | 73 x 90 x 97.7” |
| Weight | 7,000 Lbs. |
NXV
NSV
ULTRA HIGH PERFORMANCE VERTIAL MACHINING CENTER

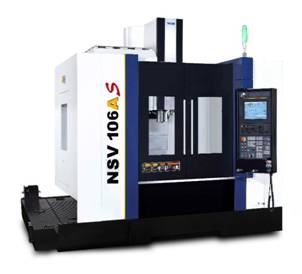

NSV-106AS
| Travel | 40” x 23.6” x 23.6” | Table | 44” x 23.6” |
|---|---|
| Table Max. Load | 2,205 Lbs. |
| Spindle motor | 40 HP |
| Spindle speed | 15,000 rpm Op. 20,000 rpm |
| Spindle taper | CT-40 BigPlus |
| ATC | 30 (Op. 48, 60) |
| ATC TIME | 1.2 Sec. |
| Rapid rate | 1,890 i.p.m. |
| Position accuracy | ± 0.000012” |
| Flower space | 151 x 128 x 120.5” |
| Weight | 15,500 Lbs. |

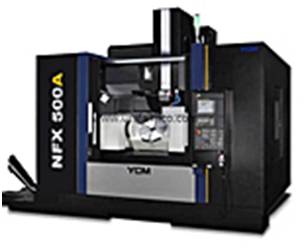

NFX SERIES5-AXIS VERTICAL MACHINING CENTER, TRUNNION TYPE
Caltec Concepts & Engineering
Caltec Concepts & Engineering
Caltec Concepts & Engineering
| MODEL | Table Dia. Ø | Travel X-Y-Z-A-C | Spindle Speed | Spindle Motor | ATC |
|---|---|---|---|---|---|
| NFX-380A | 15” | 27.5x20.5x19” A:150◦ C:360° | 12,000 15,000 | 30 HP | 30/ 40/ 60 |
| NFX-500A | 20” | 33.5x30x23.6” A:150◦ C:360° | 12,000 15,000 | 30 HP | 48/60 |
