HEAVY DUTY BOXWAYS -VERTICAL MACHIINING CENTER
THE BEST FOR MACHINING TOUGH MATERIAL LIKE Ti, SS
Why Box Ways are better than Linear Motion Guide Ways for machining Ti and SS ?
ANSWER: THE BOX WAYS ABSOLVE CUTTING VIBRATION BY FULL SURFACE CONTACT, NOTPOINTSNOR LINE CONTACTS.
BENEFITS:
1. PROVIDING BETTER SURFACE FINISH
2. LONGER TOOL LIFE
3. CUT FASTER AND DEEPER BY LESS VIBRATION.

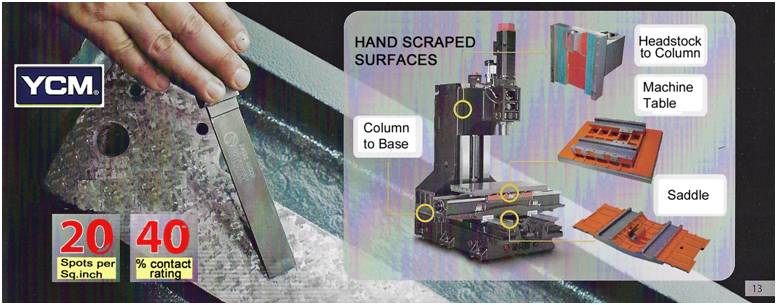

HAND SCRAPING TO MAKE THE SURFACE PERFECTLY FLAT AND SMOOTH PLUS LUB-OIL PERFECT FLOW.

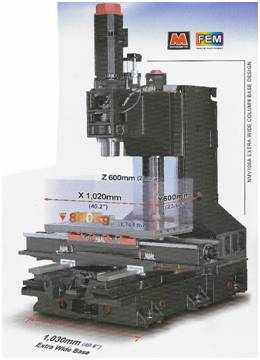

NMV SEREIS BOX WAYS TYPE VERTICAL MACHINING CENTERS

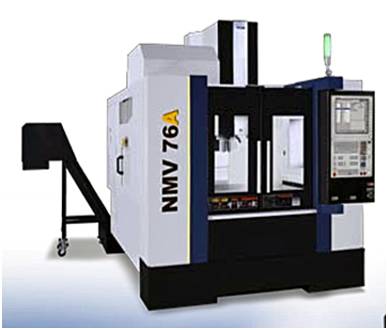

NMV-76A
NMV-106A
| MODEL | ||
|---|---|---|
| Travel | 30.5” x 20” x 22.4” | 40” x 23.6” x 23.6” |
| Table | 36” x 22.” | 44” x 23.6” |
| Table Max. Load | 1,100 Lbs | 1,765 Lbs. |
| Spindle motor | 25 HP | 25 HP |
| Spindle speed | 12,000 rpm Gear 8,000 10,000 rpm | 12,000 rpm Gear. 8,000 10,000 rpm |
| Spindle Torque | 86.8, 325.8, 260.6 Ft/Lbs. | 86.8, 325.8, 260.6 Ft/Lbs |
| ATC | 24 Op.30 | 24 Op. 30, 40 |
| ATC TIME | 1.8 Sec. | 1.8 Sec. |
| Rapid rate | 1,417 ipm | 1,417 ipm |
| Flower space | 125 x 126 x 120.9” | 151 x 128 x 120.5” |
| Weight | 11,300 Lbs. | 14,500 Lbs. |
