DCV SEREIS 5-AXIS BRIDGE TYPE MACHIING CENTERS

5-AXIS HIGH SPEED MODEL

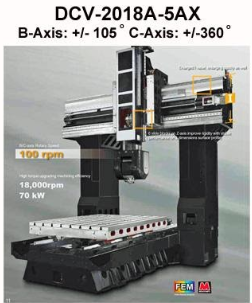

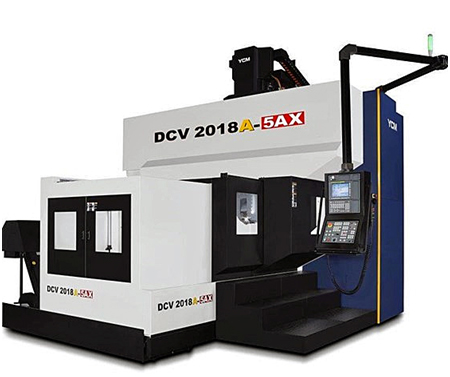

MODEL DCV-2018A-5AX DCV-3018A-5AX DCV-4018A-5AX
TRAVEL X-AXIS 86.6” 126” 165”
Y-AXIS 94.4” 94.4” 94.4”
Z-AXIS 30” (40”) 30” (40”) 30” (40”)
B-AXIS ±105ᴼ ±105ᴼ ±105ᴼ
C-AXIS ±360ᴼ ±360ᴼ ±360ᴼ
SPINDLE SPEED (RPM) 18,000 | 16,000 18,000 | 16,000 18,000 | 16,000
SINDLE TAPER HSK-A63 | HSK-A100 HSK-A63 | HSK-A100 HSK-A63 | HSK-A100
SPINDLE MOTOR (Hp) 94/75 | 54 94/75 | 54 94/75 | 54
TABLE SIZE 78.7” X 59” 118” X 59” 157.5”X 59”
BETWEEN COLUMN 70” 70” 70”

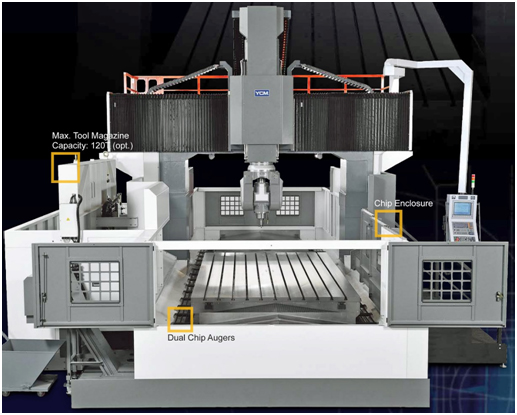

ATC (Tools) 40 / 60 / 120 40 / 60 / 120 40 / 60 / 120

HIGH POWERED 5-AXIS BRIDGE MACHINING CENTER

DCV-4030B-5AX

TRAVEL : X-160", Y-137.8", Z-40" TABLE : 161" X 94.5"
10,000 rpm HSK-A100
62 / 54 HP
ATC: 40,60,120 Tools

HEAVY DUTY BRIDGE TYPE MACHINING CENTER DCV-SERIES

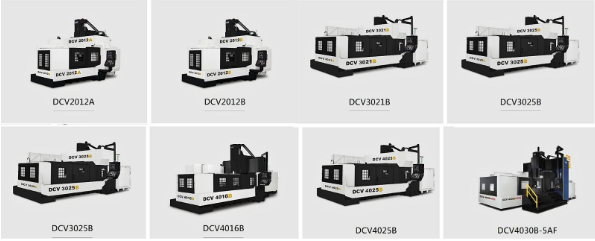

Capture46
6

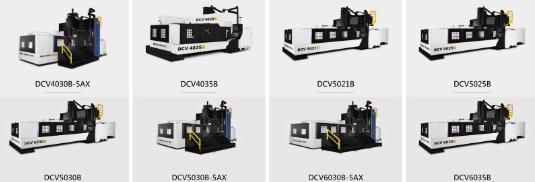

Capture47

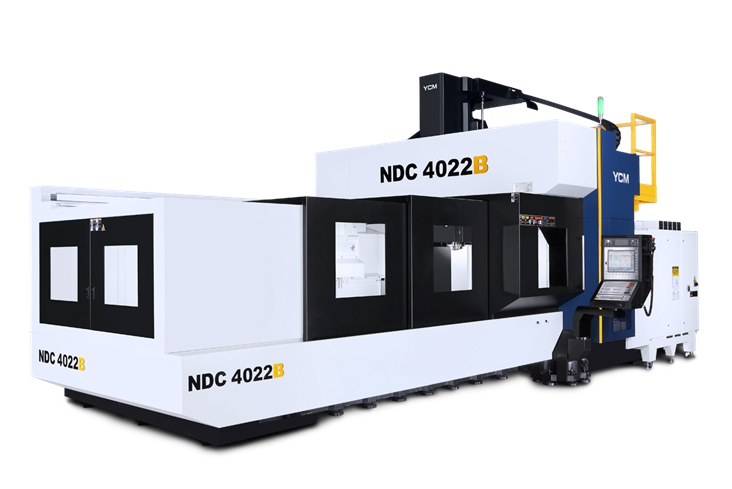

NDC BRIDGE YPE PRODUCTION MACHINING CENTER

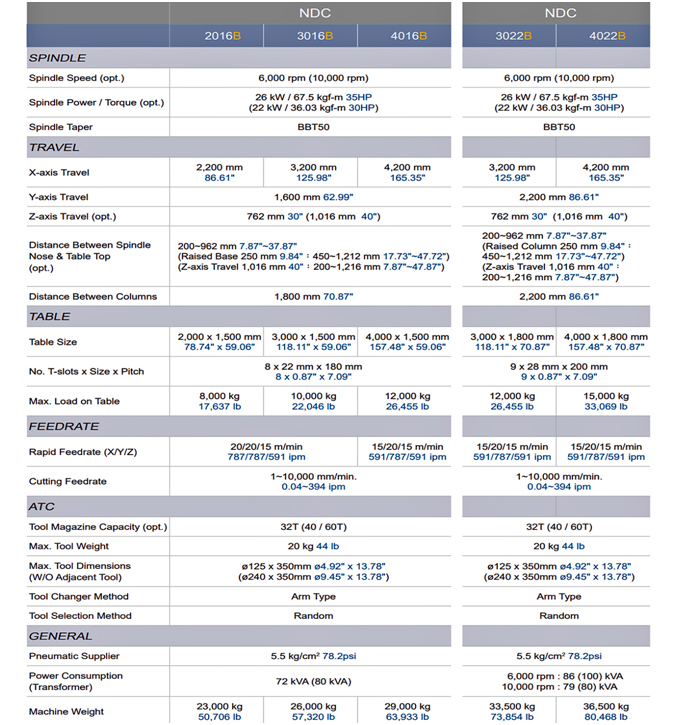

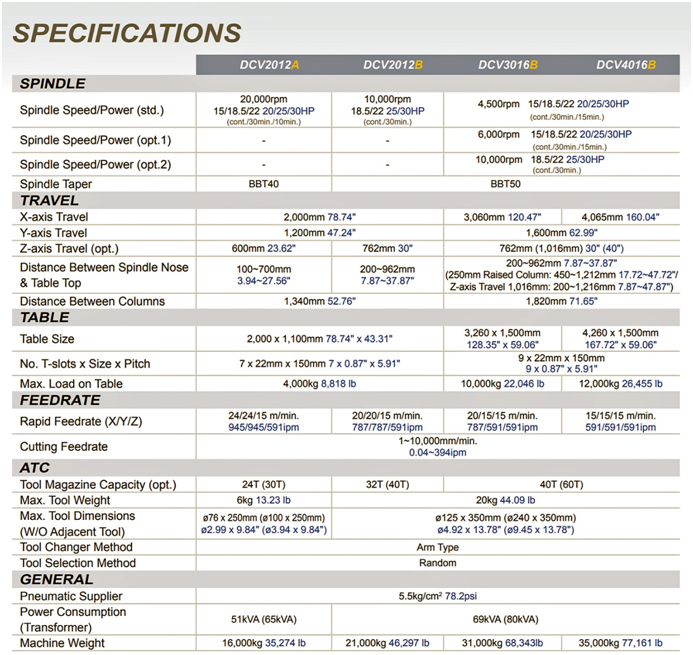

MODEL: NDC SPECIFICATION

7

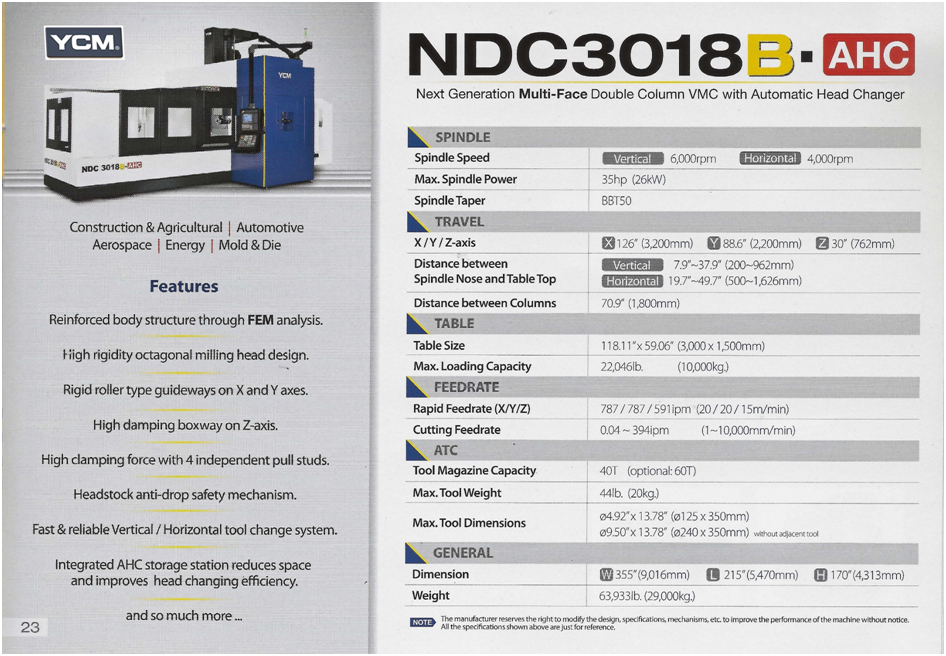

NDC WITH ATOMATIC HEAD CHANGER
