Since 1954 Building machine tools over 65 years
Over 12 Acre of manufacturing facility including own Meehanite licensed foundry.

VERTICAL MACHINING CENTERS

NXV Series High Performance Vertical Machining Center

Caltec Concepts & Engineering

MODEL	TRAVEL	TABLE SIZE	Sp. speed	Sp. motor	ATC Taper
NXV600A	23.6 X 16 x 17.7”	27.6 x 16.5	12K, 15K rpm	20 HP	20/24 tools CT40
NXV1020A	40 x 20.5 x 21.2”	44.1 x 20.5”	12K, 15K rpm	25 HP	24/30/40 CT40
NXV1380A	52.4 x 30 x 27.6”	56.3 x 30”	12K, 15K rpm	25, 40 HP	24/30/60 CT40
NXV1680A, B	64 x 34 x 30”	68.1 x 30”	6K,10k,12k,15K	25, 40 HP	24/30 CT40, 50

High Performance High Rigidity Vertical Machining Center

Caltec Concepts & Engineering

Ultra High Performance Vertical Machining Center series

SPINDLE SPEED: 15,000 rpm
SPINDLE MOTOR: 40 HP
RAPID: 1,890 IPM, 1G
ATC: 1.8 Sec. 30, 48 tools

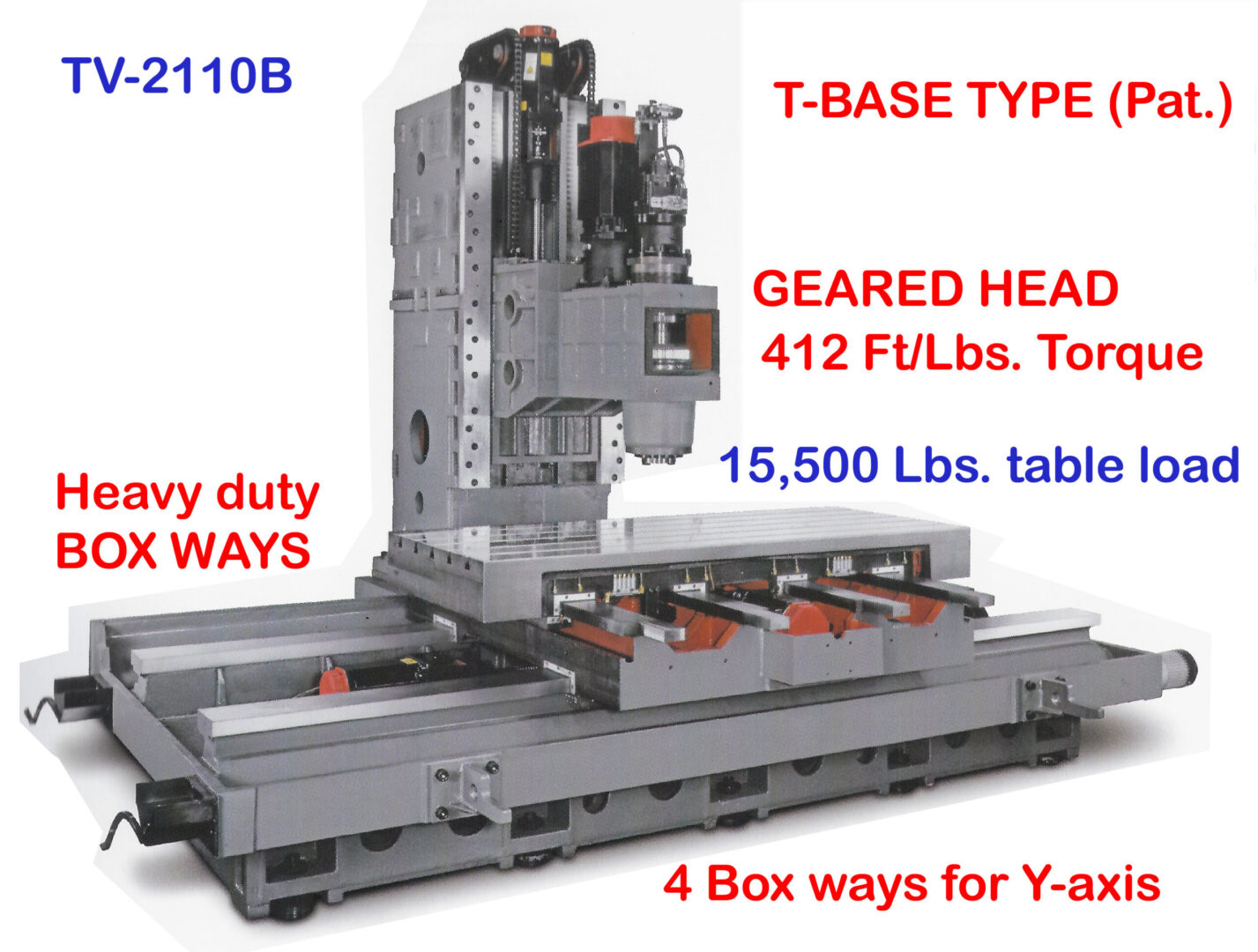

TV Series: HEAVY DUTY T-BASE MACHINING CENTER

MODEL	TV116B	TV-146B	TV-158B	TV-188B	TV-2110B	TV-2610B
TRAVEL	43.3x23.6x24.8”	55,1x24.4x24.8	59x33.8x29.5	70.8x33.8x29.5	82.6x40x30	102.4x40x30
TABLE	47 X 23.6”	59 X 23.6”	67 X 34”	78.7 X 34”	90.5 X 40”	110 X 40”
Spindle speed	6,000(Gear) rpm 10,000 Direct Dr.	6,000(Gear), 10,000 D.D	6,000(Gear), 10,000 D.D.	6,000(Gear), 10,000 D.D.	6,000(Gear), 10,000 D.D.	6,000(Gear), 10,000 D.D.
Spindle taper	50 Taper	50 Taper	50 Taper	50 Taper	50 Taper	50 Taper
Spindle motor	25 / 30 HP	25 / 30 HP	25 / 30 HP	25 / 30 HP	25 / 30 HP	25 / 30 HP
ATC	24, 32, 40 tools	24,32,40	24,32,40	24,32,40	24,32,40	24,32,40

Caltec Concepts & Engineering

MODEL	Table Dia. Ø	Travel X-Y-Z-A-C	Spindle Speed	Spindle Motor	ATC
NFX-380A	15”	27.5x20.5x19” A:150◦ C:360°	12,000 15,000	30 HP	30/ 40/ 60
NFX-500A	20”	33.5x30x23.6” A:150◦ C:360°	12,000 15,000	30 HP	48/ 60
NFP-500T MILL-TURN	20”	27.6”x47.2x19.7” A: ±120º, C:360º	18,000	70 HP	60
