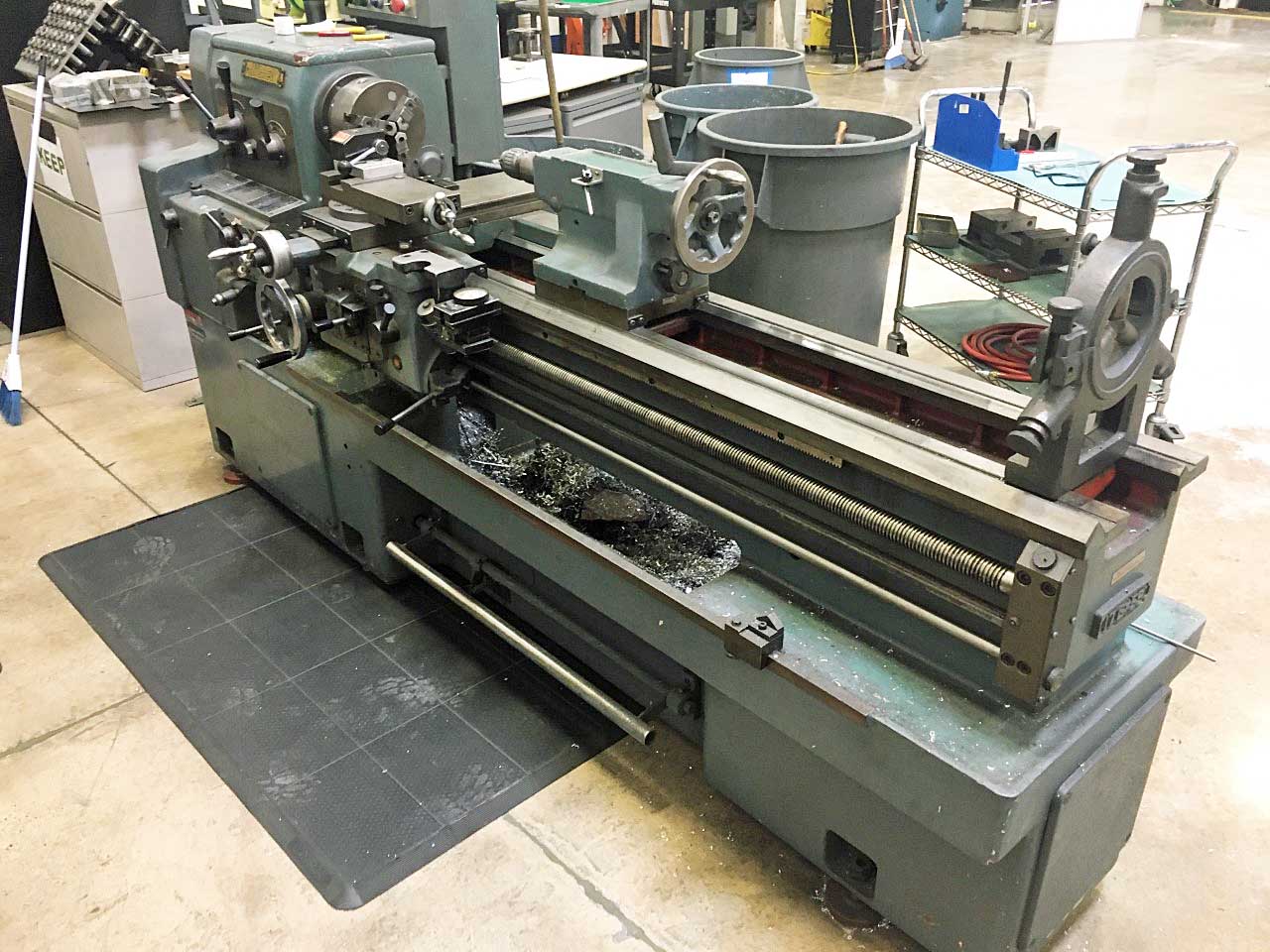

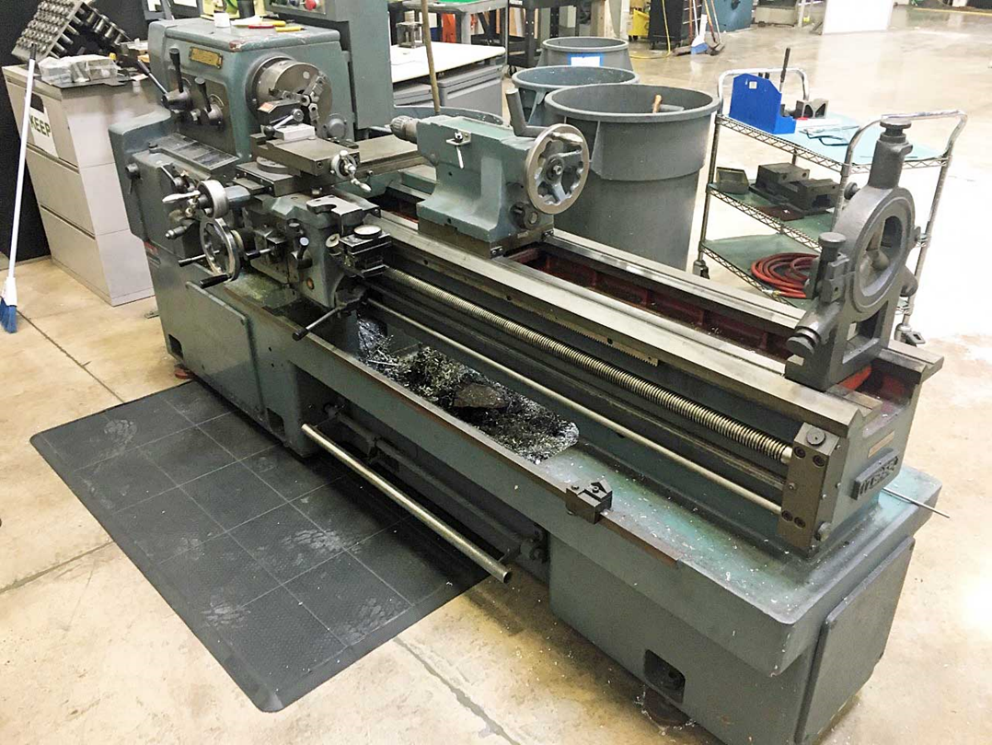

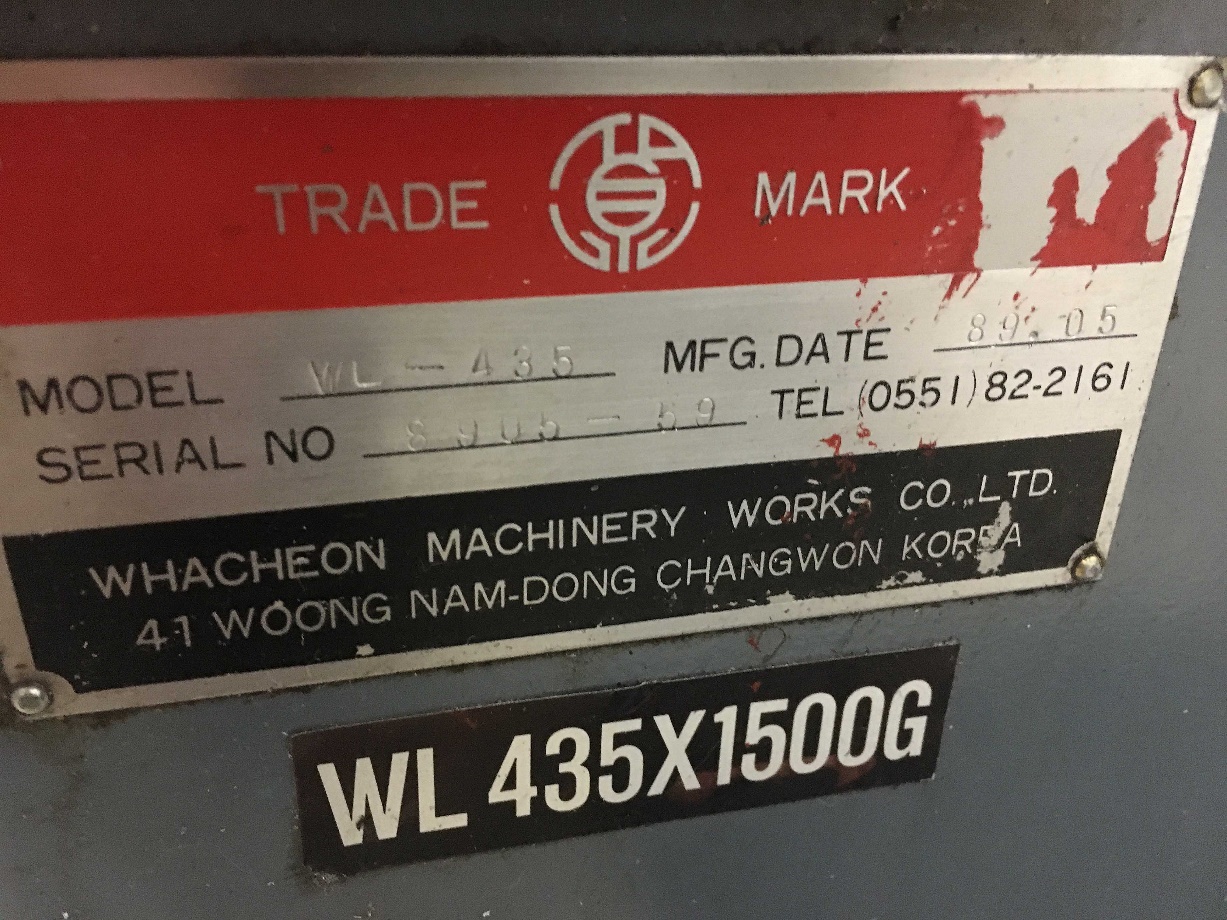

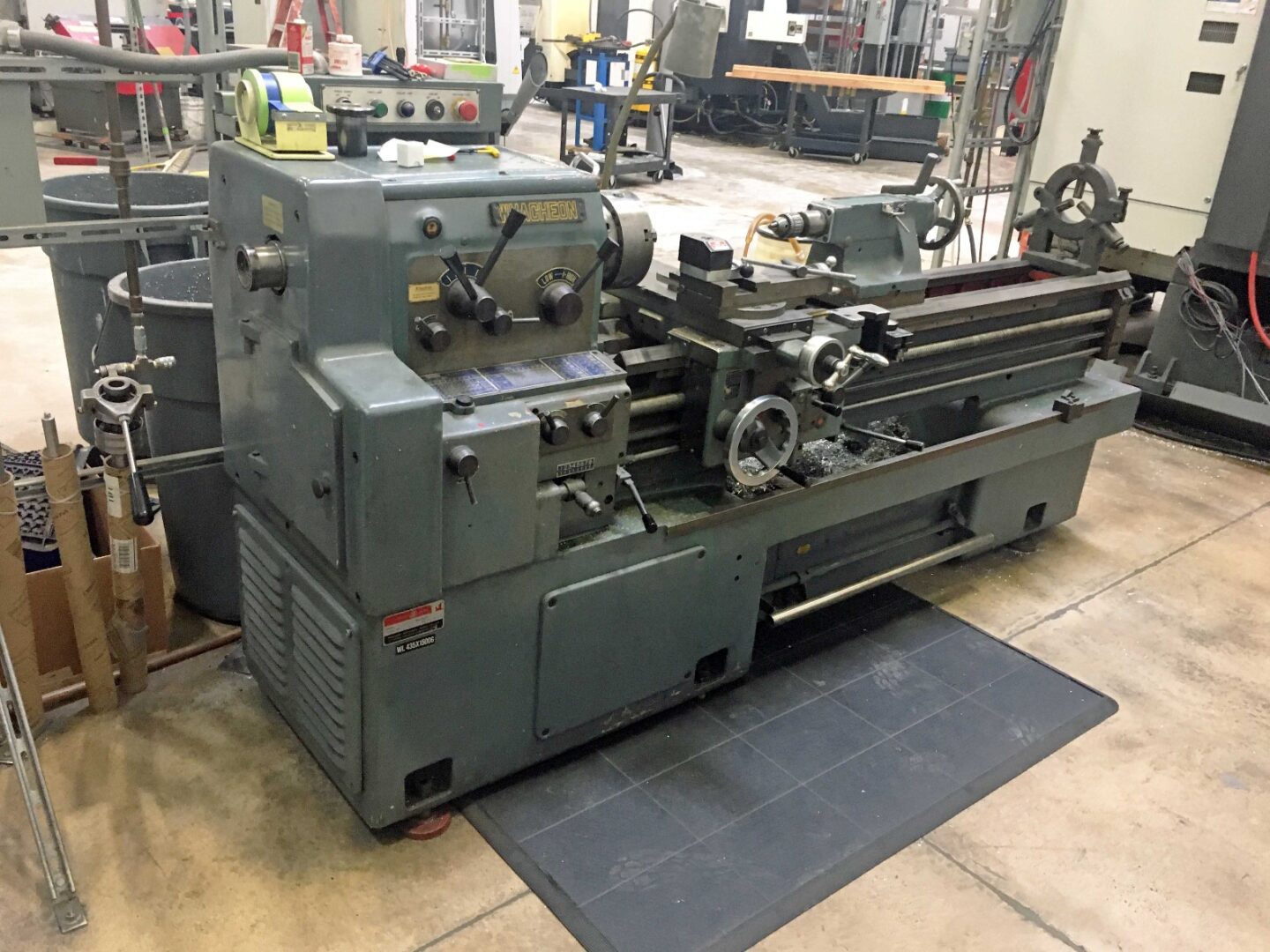

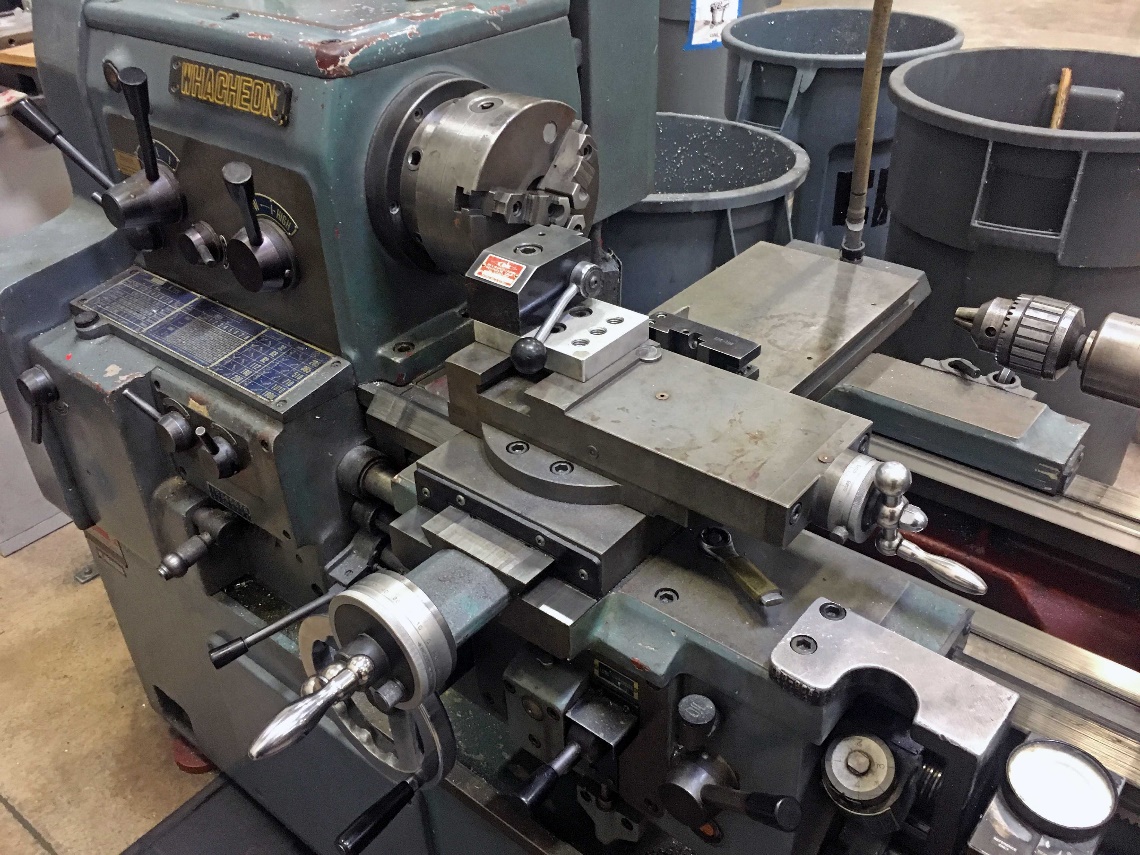

1989 USED “WHACHEON” PRECISION ENGINE LATHE MODEL: WL435 X 1500G

Caltec Concepts & Engineering

SPECIFICATIONS:

SWING: 17.1/8”
SWING OCVER GAP: 25.9/16”
DISTANCE BETWEEN CENTERS: 60”
SPINDLE SPEED: 32 – 1,800 RPM 12 STEPS
SPINDLE BORE: 2.5/32”
MOTOR HP: 5 HP/7.5 HP
CHUCK:
FLOOR SPACE:
WEIGHT:
ELECTRICITY:
8” 3 JAW
106” X 34” X 52”
6,000 LBS
220V 3 PH

EQUIPPED WITH:

  • 8" 3 JAW CHUCK
  • STEADY REST
  • THREAD DIAL
  • QUICK CHANGE TOOL POST

The machine is very good condition.

FOB: ORANGECO. CA

Caltec Concepts & Engineering
Caltec Concepts & Engineering
Caltec Concepts & Engineering
Caltec Concepts & Engineering
Caltec Concepts & Engineering
