TOP OF THE WORLD CENTERLESS GRINDER

TOP OF THE  WORLD CENTERLESS GRINDER
Caltec Concepts & Engineering
Caltec Concepts & Engineering

NEW COMPACT CENTERLESS GRINDER

Cube 350 series

Caltec Concepts & Engineering

PROLINE 400

100% reliability - low thermal growth – 100% Natural granite

Caltec Concepts & Engineering

The unique TSCHUDIN centerless grinding machine concept with digitalized configuration and grinding processes is designed for the highest possible process stability and machine availability.
Linear drives on the X-, U- and W-axis ensure flexibility and productivity. The TSCHUDIN proLine also has a patented fourth CNC-axis (Y-axis, Patent US 9.085.059) for vertical movement of the regulation wheel. The work rest and dressing tool of the regulation wheel are fixed in position at the height of the grinding wheel.

Caltec Concepts & Engineering

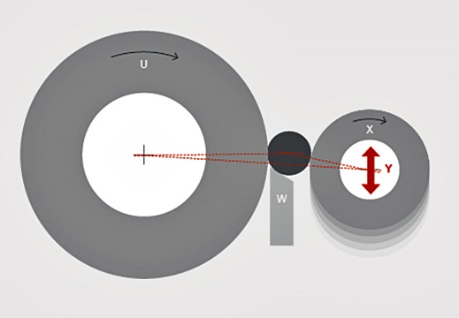

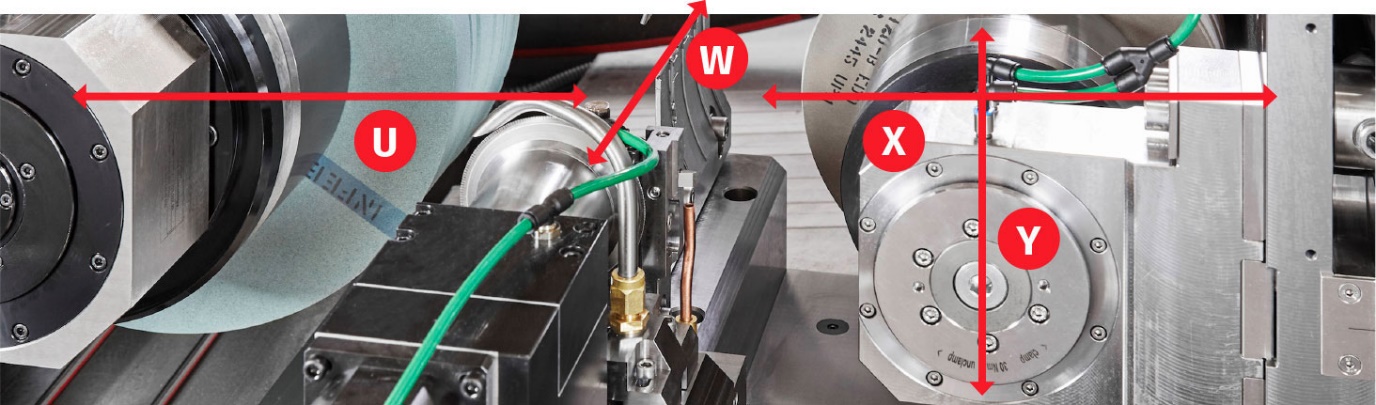

CNC controlled setting of the regulation wheel height. 4 AXIS FULL AUTOMATION

U: Grinding wheel axis
W: Workpiece / dressing axis
X : Regulation wheel axis
Y : Height adjustable regulation wheel

MULTI PARTS PLUNGE GRINDING

BY MANUAL LOAD/UNLOAD OR AUTOMATIC WITH ROBOT SYSTEM
