Fryer TC-V Series: Created for Multi-Pallet Design
TC-V Series - Vertical Traveling Columns
The Fryer TC-V Series features a fixed table and traveling column for flexibility with large parts and fixturing. You can use the machine as a multi-pallet design by using the table dividers to create work zones. The fixed table allows table loads of more than 10,000 lbs. and is available with a built in rotary table. The high torque 40- and 50-taper spindles feature available CTS and gearbox. Available Y axis travel of 24” or 32” and in sizes ranging from 40” X travel all the way to a huge 320” travel machine.

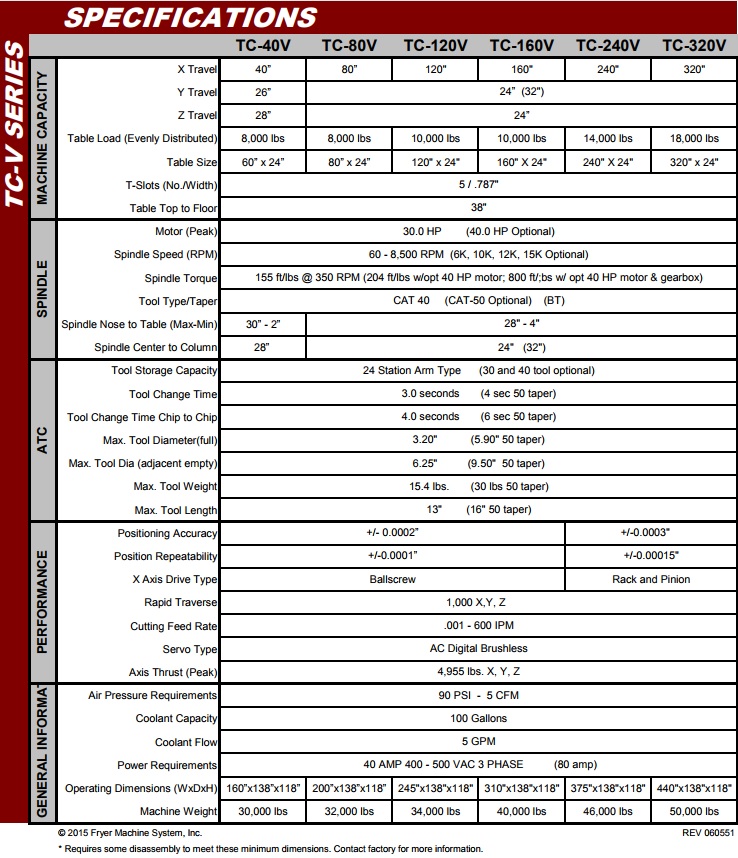

TC-40V 40" x 26" x 28"
TC-80V 80" x 24" (32") x 24"
TC-120V 120" x 24" (32") x 24"
TC-160V 160" x 24" (32") x 24"
TC-240V 240" x 24" (32") x 24"
TC-320V 320" x 24" (32") x 24"
Outstanding Features
- High rigidity linear ways for all axis
- Swiss-made rack and pinion for X axis
- 24 tool high speed arm type ATC
- 1,000 IPM rapid federate
- Extra large 150mm 40 taper 8,500 RPM spindle
- Semi guarding with full back and sides – full guarding available optionally
- High speed rigid tap with peck feature
- High intensity LED work lamp
- All axes laser calibrated & ballbar verified
- One year parts and labor warranty
Optional Features
- Heidenhain glass scales
- Flush-mounted, built-in rotary table
- Tilting head
- 15,000 RPM spindle
- Extended Y axis travel
- 50 taper spindle
- 30 tool ATC
