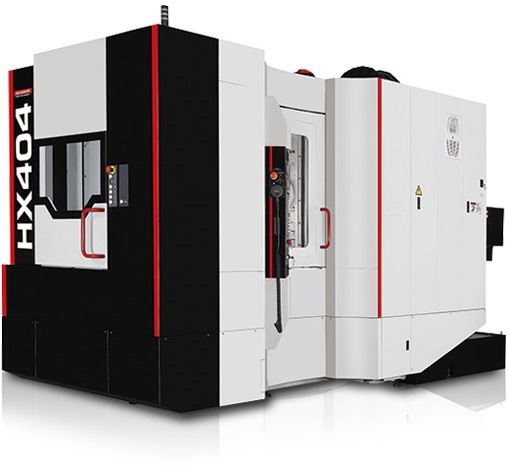

MODEL HX404

MODEL HX404
Caltec Concepts & Engineering

Specifications

  • A rigid body structure with analysis molding FEM
  • Linear guideway system
  • unique spindle structure
  • Prestressed C3 ballscrews
  • Speed ​​motor direct drive system
  • Japanese made rotary table Matsumoto
  • Removable coolant oil tank system
  • Easy use easy control unit
  • Fully closed guard cabinet
  • interior lighting
  • Cooling water system
  • Automatic lubrication system grease
  • Accurate and rigid ball screw and bearings
  • Rigid tapping function
  • High acceleration function
  • Helical interpolation
  • door safety mechanism
  • tool bag and kit
  • user guide
  • 380 V, 50 Hz, 3 – electricity transformers and equipment.
  • CE.

HX404 Technical Specifications

X Axis travel 560
Y Axis travel 640
Z Axis travel 640
Table Size 400x400
Table index 0,001
Number of Pallets 2
Max. Table Load 400
Max. work size Ø630xH900
Spindle nose to table top -
Table Top To Floor -
Spindle Speed 15000
Spindle Taper BBT40
Spindle motor 26Kw
X-axis rapid feedrate 60000
Y-axis rapid feedrate 60000
Z-axis rapid feedrate 60000
Cutting Feedrate 1-30000
Tool Magazine Capacity 60
Max. Tool Diameter/Adj. pocket empty 80/150
Max. Tool Length 350
Max. Tool Weight 10
Positioning Accuracy ±0,003
Repeatability ±0,002
CNC Control Fanuc 0iMD
Power Requirement 44
Air Requirement 5-9
Hydraulic unit tank capacity (Pump) -
Lubrication oil tank capacity -
Coolant tank capacity ( pump ) 450
Machine Height 2624
Machine Floor space 2455X4914
Machine Weight 9200
