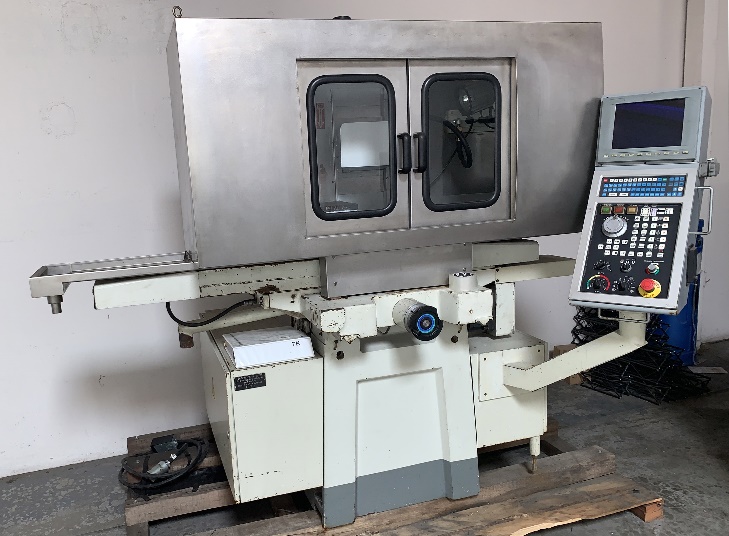

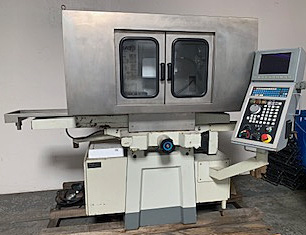

2012 USED “CHEVALIER” CNC SURFACE & PROFILE GRINDER MODEL: SMART-B818II

Ball screw drive model. 3-Axis conversational CNC, Semi Automatic or Manual operation.

1

SPECIFICATIONS:

Max. grinding length: 18”
Max. grinding width: 8”
Table size: 8” x 18”
Table load capa.: 462 Lbs.
Grinding wheel: 8” x 1.1/4”
Longitudinal Movement: 19.6”
Cross travel Movement: 8.3/4”
Table speed: 0.065 – 82 fpm (Infinitely variable)
Rapid travers rate: 0 -100 fpm
Least increment input: 0.0001” (0.001mm)
Vertical infeed least input: 0.0001” (0.001mm)
Spindle to table surface: 16” Max.
Spindle speed: 3,450 rpm
Spindle motor: 2.7 HP
Power requirement: 5 Kw, 220V, 3Ph 60 Cycle
Floor space: 81” x 82” x 82”
Machine weight : 2,670 Lbs.

Equipped with:

  • Chevalier SMART CNC 3-axis control, conversational type
  • Installed Brand new spindle
  • Stainless steel fully enclosed splash guard (Value $6500.00)
  • 8 x 18” Electric magnetic chuck
  • Manual

 FOB: Dominguez Hills, CA (In stock at our show room)

2

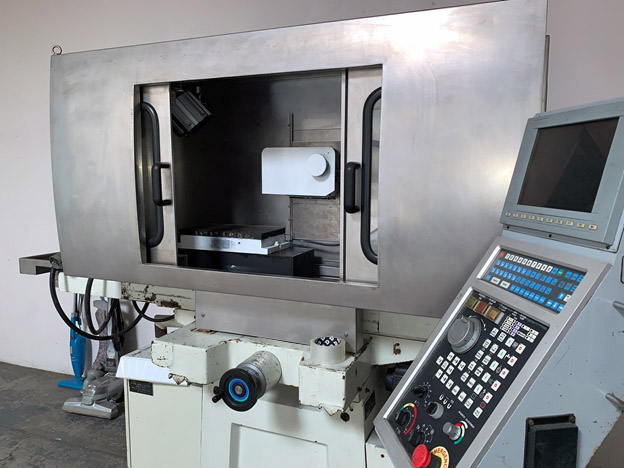

STAINLESS STEEL FULLY ENCLOSED SPLASH GUARD

3

CHEVALIER SMART 3-AXIS CNC CONVERSATIONAL CONTROL

4
